MCP Precision Tools — Deterministic Computations¶

What is the MCP Server?¶

The MCP server (mcp_server/server.py) exposes a dynamic catalogue of deterministic computations and bounded infrastructure connectors behind a unified REST API. Clients must discover the deployed set through GET /tools, because tools can be added or administratively disabled. The service implements the Model Context Protocol (MCP) and is also directly callable via /invoke.

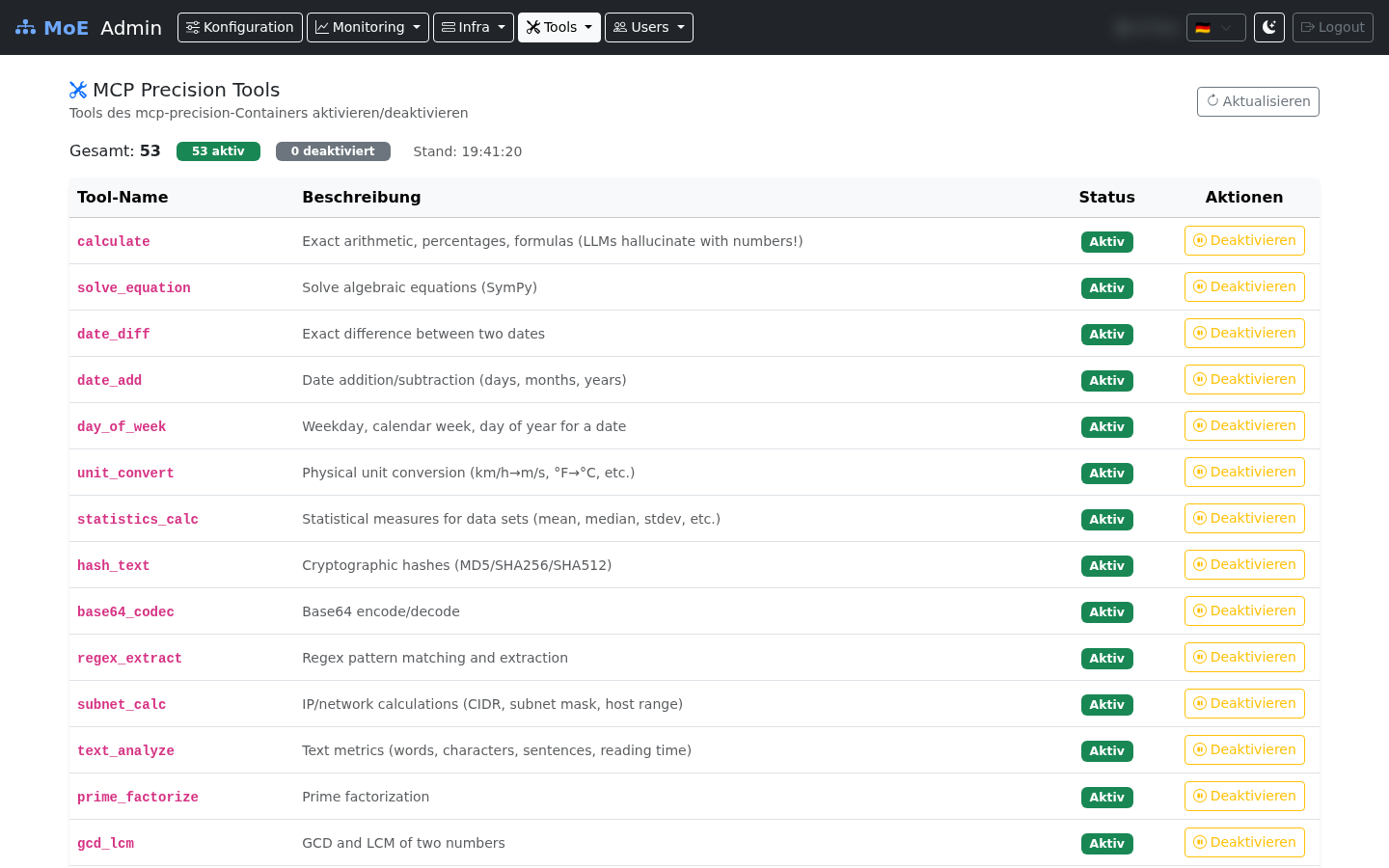

MCP Tools Admin View

Why Precision Tools instead of LLM computation?¶

LLMs can hallucinate on computations. Common error classes include: - Multi-digit arithmetic - Equations with parameters - Date and time differences - Subnet masking (CIDR) - Unit conversions

...especially when the answer is embedded in natural language text.

For a declared precision task, the mcp node calls the service and returns the deterministic result as execution evidence. An initial fail-closed intent guard also prevents explicit GCD, km/h-to-m/s and German/English weekday requests from silently becoming general LLM tasks. Other tool domains still depend on planner selection and must not be described as completely offloaded until they receive an equally typed intent contract.

MCP transport alone does not make a fact deterministic. Local calculations can be reproducible from their input, while legal/public-data/search connectors depend on a source snapshot and retrieval time. The full boundary and prioritized gap analysis is in the deterministic offloading evaluation.

Pagination for code models — Large code responses (e.g. AST analyses, regex extracts over long text) are paginated so code models with limited context windows are not overwhelmed.

Core computation tools¶

The following table is the stable core, not an exhaustive registry. GET /tools is authoritative and includes each tool's JSON input schema, enabled state and access classification.

The orchestrator loads only entries whose live enabled state is true. A successful reload replaces the executable schema catalogue as one set, so a removed or disabled tool cannot remain plannable through stale process state. If discovery fails, executable schemas are cleared and mandatory precision contracts fail closed; static fallback descriptions are not execution proof.

Versioned structured contracts¶

calendar_facts, gcd_lcm, unit_convert, time_facts, timezone_convert, decimal_finance, exact_probability and structured_validate publish version 1.0.0 contracts. Their discovery entries include the complete input and output JSON Schemas, a canonical contract hash, determinism/source metadata, normalization, retry and cache policies, evidence-redaction rules and result-size limits. The current policy applies documented schema defaults, rejects unknown properties, does not permit argument mutation, performs one execution attempt, and bypasses answer caches until the cache reader can revalidate the complete evidence envelope.

For these tools /invoke retains the legacy result field and adds structured_result. The new envelope binds contract_id, version and hash, normalized input, typed facts, determinism class, runtime source/version, warnings and a canonical result hash. Both server and orchestrator validate the schemas and hashes; malformed input, output, source metadata or hash data cannot become completed evidence. The final quality gate revalidates the same material before an API response may pass.

Tool	Library	Description
`calculate`	Python `ast` (safe eval)	Arithmetic without `eval()` — safe against injection
`solve_equation`	SymPy	Algebraic equations with symbolic variables
`date_diff`	python-dateutil	Exact total days plus calendar years/months/days
`date_add`	python-dateutil	Date + time delta
`calendar_facts`	Python stdlib	Localized weekday and structured ISO calendar facts
`time_facts`	zoneinfo + pinned tzdata	Offset, DST, fold and calendar facts for an explicit instant
`timezone_convert`	zoneinfo + pinned tzdata	DST-safe conversion between explicit IANA time zones
`decimal_finance`	decimal (stdlib)	Decimal-string finance operations with explicit scale and rounding
`exact_probability`	fractions/math (stdlib)	Exact bounded rational probability and combinatorics
`structured_validate`	locked safe parser set	Bounded JSON, YAML, XML and CSV parsing/validation without network resolution
`day_of_week`	python-dateutil	Weekday for any date
`unit_convert`	pint	SI units, imperial measures, energy, pressure
`statistics_calc`	statistics (stdlib)	Mean, median, stdev, variance, mode
`hash_text`	hashlib	MD5, SHA-1, SHA-256, SHA-512
`base64_codec`	base64 (stdlib)	Encode and decode
`regex_extract`	re (stdlib)	Regex match with group extraction
`subnet_calc`	ipaddress (stdlib)	CIDR, network address, broadcast, host range
`text_analyze`	—	Word/char/sentence count, readability score
`prime_factorize`	—	Prime factorization
`gcd_lcm`	math (stdlib)	Greatest common divisor, least common multiple
`json_query`	jmespath	JMESPath queries on JSON structures
`roman_numeral`	—	Arabic ↔ Roman

API Reference¶

Base URL: http://localhost:8003

Invoke a tool¶

POST /invoke
Content-Type: application/json

{
  "tool": "calculate",
  "args": {"expression": "2 ** 32 - 1"}
}

Response:

{"result": 4294967295}

Versioned precision tools additionally return:

{
  "result": "GCD(391, 299) = 23  |  LCM(391, 299) = 5083",
  "tool": "gcd_lcm",
  "structured_result": {
    "status": "completed",
    "tool": "gcd_lcm",
    "contract_id": "moe.precision.gcd_lcm",
    "contract_version": "1.0.0",
    "contract_hash": "<sha256>",
    "input_normalized": {"a": 391, "b": 299, "operation": "both"},
    "facts": {"a": 391, "b": 299, "operation": "both", "gcd": 23, "lcm": 5083},
    "determinism": "input_only",
    "source": {"kind": "python_stdlib", "name": "math", "version": "<python-version>", "as_of": null},
    "warnings": [],
    "result_hash": "<sha256>"
  }
}

Calendar example:

{
  "tool": "calendar_facts",
  "args": {"date_str": "2026-07-29", "locale": "de"}
}

The result is a stable JSON string containing weekday_name, weekday_iso, iso_week, iso_week_year, day_of_year, days_in_month, is_leap_year, quarter and related normalized fields. Relative dates are rejected because a reproducible answer needs an explicit clock and time zone.

time_facts and timezone_convert likewise require explicit ISO values and IANA zone names. Naive local times that fall into a DST gap are rejected; ambiguous fold times require an explicit fold selection. The production image pins tzdata==2026.3, and the runtime version is part of the evidence.

decimal_finance accepts canonical decimal strings rather than binary floats. Scale, rounding and currency are explicit inputs; exchange rates, tax law and jurisdictional rules are intentionally outside this input-only contract. exact_probability keeps Fraction as the exact result and emits a Decimal projection only when both scale and rounding were requested.

structured_validate applies strict payload, schema, depth, node, row, column and field limits. YAML aliases/tags, XML DTD/entities/XInclude and JSON Schema references are rejected. Raw payload and schema contents are replaced with SHA-256 and byte-count records at evidence and telemetry boundaries.

Additional endpoints¶

GET /health      # Service status and currently registered tool names
GET /tools       # Authoritative catalogue, enabled state and argument schemas
GET /mcp/sse     # MCP SSE stream (for MCP-compatible clients)

Adding a new tool¶

Tools are fully self-contained in mcp_server/server.py. A minimal example:

async def roman_numeral(args: dict) -> dict:
    """
    Converts between Arabic and Roman numerals.
    Args: {"number": int} or {"roman": str}
    """
    try:
        if "number" in args:
            n = int(args["number"])
            # ... conversion logic ...
            return {"roman": result}
        elif "roman" in args:
            # ... reverse conversion ...
            return {"number": result}
        else:
            return {"error": "Provide either 'number' or 'roman'"}
    except Exception as e:
        return {"error": str(e)}

Afterwards: 1. Decorate/register the function with @mcp.tool(). 2. Add it to _TOOL_REGISTRY, _TOOL_DESCRIPTIONS and _TOOL_ACCESS_KIND; startup logging identifies missing classifications. 3. Add focused tests for the direct function and the REST /invoke contract. 4. Document stable public semantics here; do not duplicate the generated schema listing.

File Generation Tool¶

The generate_file tool creates downloadable files from text content. It is used by the orchestrator's output skill system to produce formatted deliverables.

Supported Formats¶

Format	Extension	Library	Notes
HTML	`.html`	Built-in	Content wrapped in a styled HTML template
DOCX	`.docx`	python-docx	Headings (`#`, `##`, `###`) and paragraphs parsed from content
PPTX	`.pptx`	python-pptx	`##` headings become slide titles; body lines become bullet points
Markdown	`.md`	Built-in	Raw content written as-is
Plain Text	`.txt`	Built-in	Raw content written as-is

API Usage¶

POST /invoke
Content-Type: application/json

{
  "tool": "generate_file",
  "args": {
    "content": "# Report\n\nFindings paragraph...",
    "filename": "security-audit",
    "format": "docx"
  }
}

Response:

{
  "result": "File generated: a1b2c3d4e5f6_security-audit.docx (12.3 KB)\nDownload: /downloads/a1b2c3d4e5f6_security-audit.docx"
}

Download Endpoint¶

Generated files are served via a static download endpoint:

GET /downloads/{filename}

Property	Value
Storage directory	`/app/generated/`
Filename format	`{uuid12}_{sanitized_name}.{ext}`
Auto-cleanup	Files are deleted after 24 hours
Content-Type	Inferred from extension (e.g., `application/vnd.openxmlformats-officedocument.wordprocessingml.document` for DOCX)

Deployment¶

# docker-compose.yml (excerpt)
mcp-precision:
  build:
    context: .
    dockerfile: mcp_server/Dockerfile
  ports:
    - "127.0.0.1:${MCP_HOST_PORT}:8003"
  environment:
    - NEO4J_URI=bolt://neo4j:7687

Port: 8003
Dockerfile: mcp_server/Dockerfile
Dependency intent: mcp_server/requirements.txt
Build authority: mcp_server/requirements.lock.txt (exact transitive versions)
